SGS510-STD-GG-L5
Specification

Variations
SGS510
SGS510 MG
SGS510 MG-T
SGS510 HAP
SGS510 HAP-M

* MG and HAPM of this model are DSL specification.
Array : etc…
Finishes : C, GG, B, CK, CS, GS, BS, XN, XC, XG
String Post : STANDARD, MG, MG-T, HAP, HAP-M
Gear Ratio : 1 : 15
Weight : 30.7 to 36.8 g/1pc *(Varies by option)
e.g. : SGS510-S5-L-HAPM
SGS510-B07-R-HAP
SGS510-L5 etc…
This model is suitable also for 6-in-line.
* Aluminum buttons (A01, A07, A20) and satin finish cannot be combined.

Functions & Dimensions

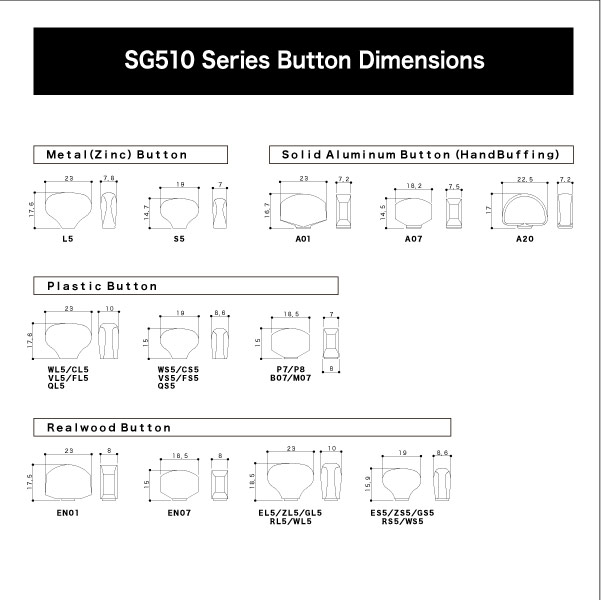

Button Option & String Post Dimensions




Related Products

SGi510

Gear Ratio 1:16

SGV510Z

Gear Ratio 1:21

SGV510

Gear Ratio 1:18

SGL510Z

Gear Ratio 1:21

SGL510

Gear Ratio 1:18

SGS510Z

Gear Ratio 1:18

Handling Precautions

When equipping the existing musical instrument with GOTOH products, processing of addition to the musical instrument side may be necessity. If attachment impossible without processing is carried out, there is a possibility of leading to breakage of a musical instrument. Please check size etc. well before purchase. Moreover, We recommend that clearing work is requested from specialists, such as a repair shop. Also, for handling, please refer to the instruction manual or video instruction manual of our website and work with great care. In addition, about breakage of the musical instrument when replacing, an accident, etc., it shall be considered as self-responsibility, and our company shall not take any responsibility.
